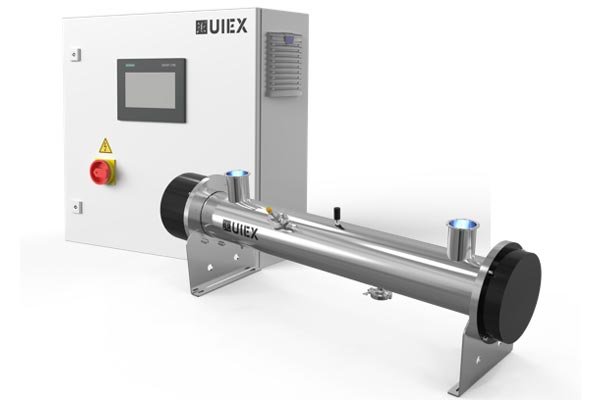

UIEX 185-VUV products utilize long-lasting UV light sources made by synthetic quartz with exceptional VUV transmittance. The 185nm UV light boasts ultra-high conversion efficiency, effectively reducing TOC levels to below 1 ppb in the treated water. |  |
This innovation significantly reduces the number of system lamp tubes, optimizes pipeline connections,lowers operational costs and maintenance workload, while delivering energy efficiency and environmental protection benefits. |  |
185-VUV SERIES MODELS • Designed in a variation of 4 models • Reduced plumbing connections with reduction in equipment • Up to 186mJ /cm2 after 5000hours working time * | ||
| SEND PRODUCT INFO |
Click here for more information about this product.
*Specifications are subject to change.
**Availability of options depend on equipment size. Please contact us for more information.
- Features
- Options
- Types of Industries
• Synthetic quartz glass lamp tubes and Sleeves
• 316L Stainless Steel Reactor Chamber
• Stationary Flow Management Baffle
• Stainless Steel Compression Nipple
• 9,000 Hour Guaranteed Lamp Life
• Operating Pressure 150 psi (10.5 bar)
• Modular Design for Future Expansion
• Reusable Dust Filters on Intake/Exhaust Fan Vents
• High Voltage Insulation Lamp Socket
• Temperature Safety Circuit
• Enclosure Over Temp Sensor
• LED Lamp Operational Display
• Lamp Out Circuit
• Hand/OFF/Auto Circuit
• UV Relative Intensity Meter & Sensor Probe
• 4-20 mA Signal Output
• Remote Electrical Enclosure
• Electrical Enclosure
• Custom Flange-to-Flange and Height dimensions
• Easily Expandable Modular Skid Frame
• Transformer for Optional Voltages
• Sanitary Ferrules
• Food & Beverage
• Life Sciences
• Microelectronics
• Oil & Gas
• Power Generation
